Summary

MICROFIT MFHLP31490 Replaces the Main Filter MF0060330

MICROFIT MFHLP31490
Representative product image Product image feedback

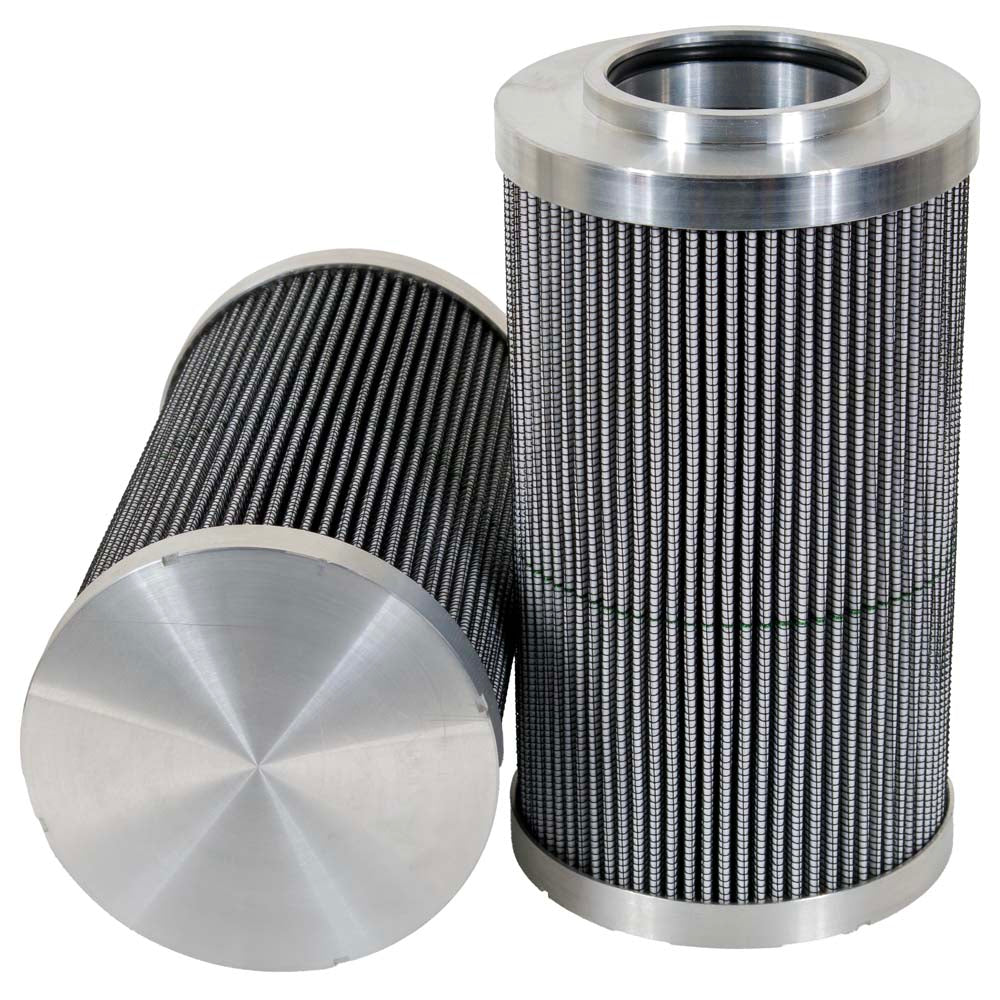

MICROFIT® UltraGen III MFHLP31490 Replaces the Main Filter MF0060330

MFHLP31490
MICROFIT
Main Filter MF0060330
Description

The MICROFIT® UltraGen III MFHLP31490 is the MICROFIT® approved replacement to the Main Filter MF0060330. Engineered and manufactured in Great Britain the MFHLP31490

Brand: MICROFIT
Price Matched
€78,95
2.0 kg
8421.99.90
United Kingdom
0.91 kg
8421.99.90
Italy
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31490 is the MICROFIT® approved replacement to the Main Filter MF0060330. Engineered and manufactured in Great Britain the MFHLP31490

Specification

StylePressure Filter
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
MediaGlass Fiber
Flow DirectionOUT-IN
Δ Collapse Pressure 20 BAR
Seal MaterialViton
Temperature Range -25 - +120°C

Approved Product

Find out more
Default Brand Logo

Same Fit-Form & Function

As the Genuine Main Filter MF0060330

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Viton
Temperature Range -25 - +120°C
