Donaldson P763258 Replaces the MDF MDH 9049
Donaldson P763258 Replaces the MDF MDH 9049
P763258
Donaldson
MDF MDH 9049
Donaldson
MDF MDH 9049
Description

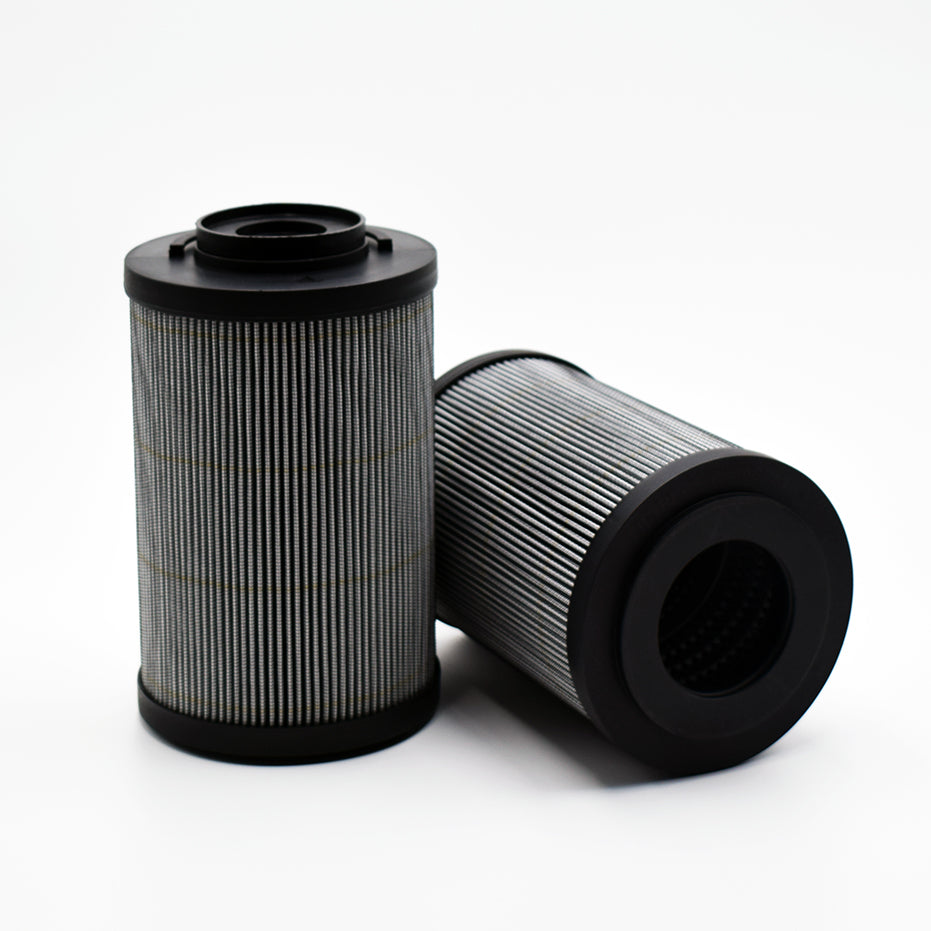

Genuine Donaldson P763258 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.
Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.
Brand:
Donaldson
Regular price
€56,95
Unit price
per
1.89 kg
8421.29.80.90
Italy
2.1 kg
8421.99.90
France
1.68 kg
8421.99.90
Italy
Description
Genuine Donaldson P763258 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.
Specification
| Style | Return Filter |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 130.0 mm |
| Inner Diameter | 64.5 mm |
| Length | 404.0 mm |
| Bypass Pressure | 1.7 BAR |
| Media | Glass Fiber |
| Flow Direction | OUT-IN |
| Δ Collapse Pressure | 10 BAR |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
