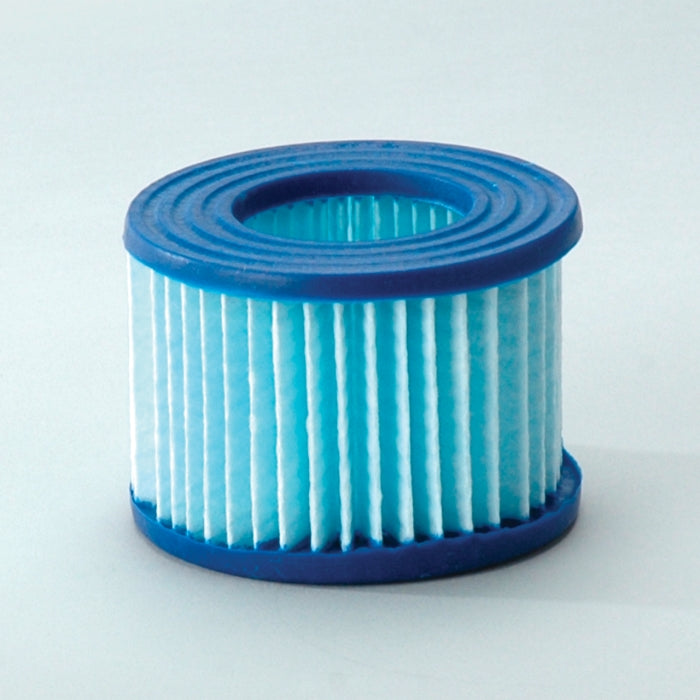

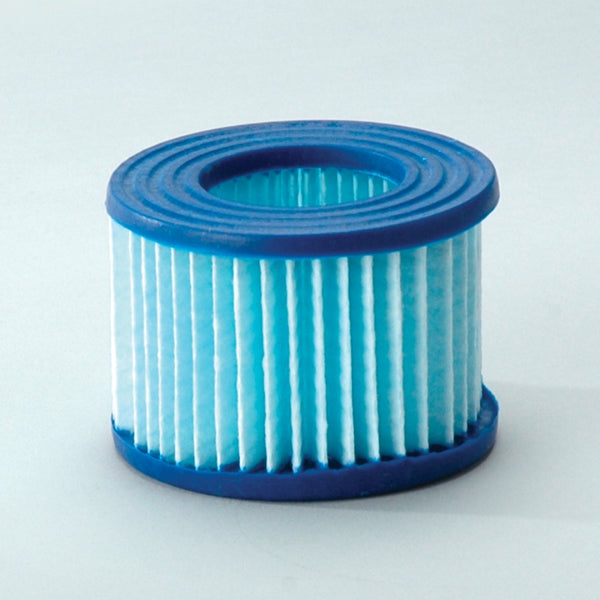

Specification

StyleFilter
Efficiency 110µ @ β2
Outer Diameter 85.0 mm
Inner Diameter 44.0 mm
Length 60.0 mm
MediaCellulose
Flow DirectionOUT-IN
Seal MaterialPlastisol
Temperature Range -30 - +100°C

Approved Product

Find out more

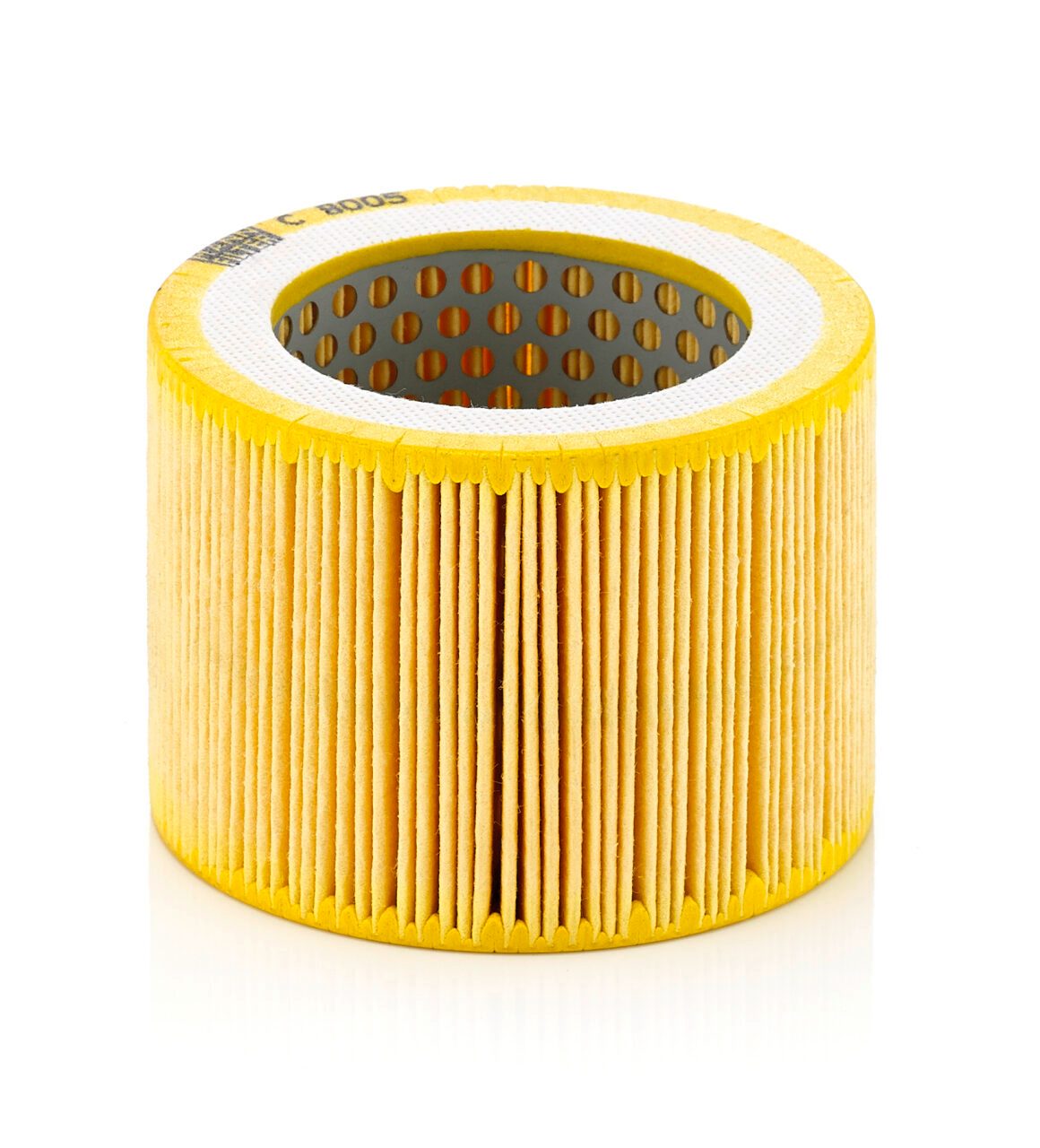

Mahle Brand Logo

Same Fit-Form & Function

As the Genuine Mahle 852519MIC

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β2
Efficiency 2
Style Filter
Outer Diameter 85.0 mm
Inner Diameter 44.0 mm
Length 60.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Plastisol
Temperature Range -30 - +100°C
